Rugged UPS Solutions for Underground Mining

TIPS：When underground operations face power interruptions, a heavy duty UPS system becomes the lifeline for critical mining infrastructure. This article explores how heavy duty UPS systems protect sensitive equipment in extreme conditions. We examine mining UPS for harsh environment applications, focusing on dust, humidity, and vibration challenges. BKPOWER’s integrated approach combines robust battery backup with advanced thermal management. Discover why mining UPS for harsh environment deployments require more than standard commercial units.

Ⅰ. Underground Power Challenges: Beyond Blackouts

Mining operations confront unique electrical threats. Voltage sags, harmonic distortion, and instantaneous interruptions plague underground networks. These power quality issues damage sensitive control systems. They disrupt automated drilling operations. They compromise safety monitoring networks.

Standard commercial UPS units fail in mining environments. Consumer-grade battery backup systems lack structural integrity. They cannot withstand corrosive atmospheres. They fail under constant mechanical stress. Mining requires specialized heavy duty UPS systems engineered for extreme duty cycles.

The underground environment presents three critical stressors:

• Particulate infiltration: Coal dust, silica particles, and metallic debris penetrate standard enclosures. They accumulate on heat sinks. They block cooling vents. They cause thermal runaway.
• Moisture penetration: High humidity, condensation, and water ingress corrode circuit boards. They degrade battery terminals. They create short circuits.
• Mechanical vibration: Drilling operations, blasting vibrations, and heavy equipment movement shake electrical components. They loosen connections. They fatigue solder joints.

BKPOWER addresses these challenges through integrated thermal management and structural reinforcement designs.

Ⅱ. Core Functions of Heavy Duty UPS Systems in Mining

A heavy duty UPS system performs four critical functions in mining operations:

1. Power Conditioning

Mining electrical networks experience voltage fluctuations. These swings damage programmable logic controllers (PLCs). They disrupt variable frequency drives (VFDs). A robust UPS stabilizes output voltage. It filters electrical noise. It delivers clean sine wave power.

2. Ride-Through Capability

Temporary voltage sags last milliseconds. They cause equipment resets. They interrupt production cycles. A mining UPS for harsh environment provides ride-through power. It bridges gaps until generators start. It maintains continuous operations.

3. Safe Shutdown Sequences

Unexpected outages damage drilling equipment. They corrupt data logs. A properly sized UPS enables controlled shutdowns. It protects mechanical components. It preserves operational data.

4. Safety System Support

Emergency lighting, ventilation fans, and communication systems require absolute reliability. They cannot fail during power events. Heavy duty UPS units support these critical loads. They ensure personnel safety.

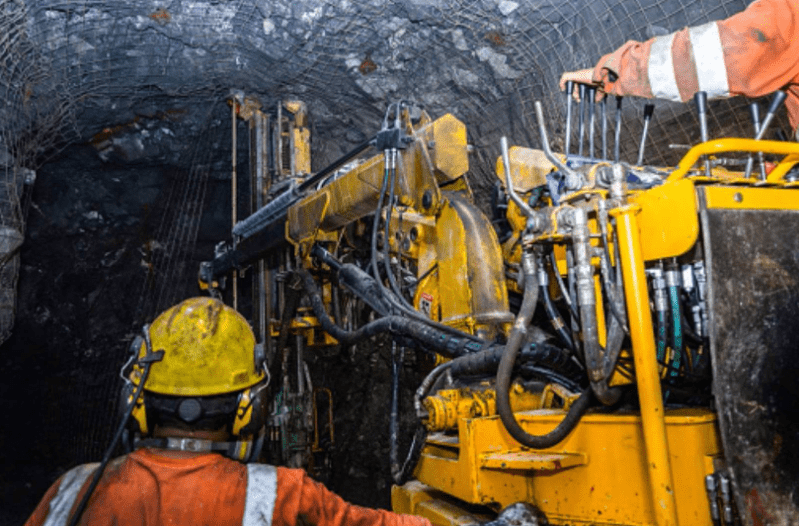

Figure 1: Underground mining operations require electrical equipment that withstands constant vibration and dust exposure.

Ⅲ. Environmental Hardening: Technical Design Responses

BKPOWER engineers mining UPS for harsh environment applications with specific countermeasures against the triple threat of dust, humidity, and vibration.

1. Dust Mitigation Strategies

Dust particles smaller than 2.5 microns infiltrate standard enclosures. They coat electronic components. They inhibit heat dissipation.

Our solution employs:

• IP65-rated sealed enclosures: These prevent dust ingress. They maintain internal cleanliness.
• Positive pressure cooling: Filtered air creates slight internal pressure. It prevents dust infiltration through gasket gaps.
• Conformal coating: Circuit boards receive protective chemical layers. They repel conductive dust particles.

2. Humidity Control Mechanisms

Underground humidity levels exceed 95% relative humidity. Condensation forms on cold surfaces. It creates electrical pathways between traces.

Our design incorporates:

• Anti-condensation heaters: These maintain enclosure temperature above dew point. They prevent moisture accumulation.
• Desiccant breather valves: These allow pressure equalization. They block moisture entry.
• Epoxy-encapsulated components: Critical circuits receive full potting. They achieve moisture immunity.

3. Vibration Resistance Engineering

Mining equipment experiences vibrations from 5 Hz to 2000 Hz. Acceleration forces reach 5G during blasting events.

Our structural reinforcements include:

• Isolated mounting systems: Elastomeric isolators decouple UPS chassis from structural vibrations.
• Reinforced solder joints: Thick-film PCB technology resists mechanical fatigue.
• Torque-sealed connections: All terminal connections use vibration-resistant hardware.

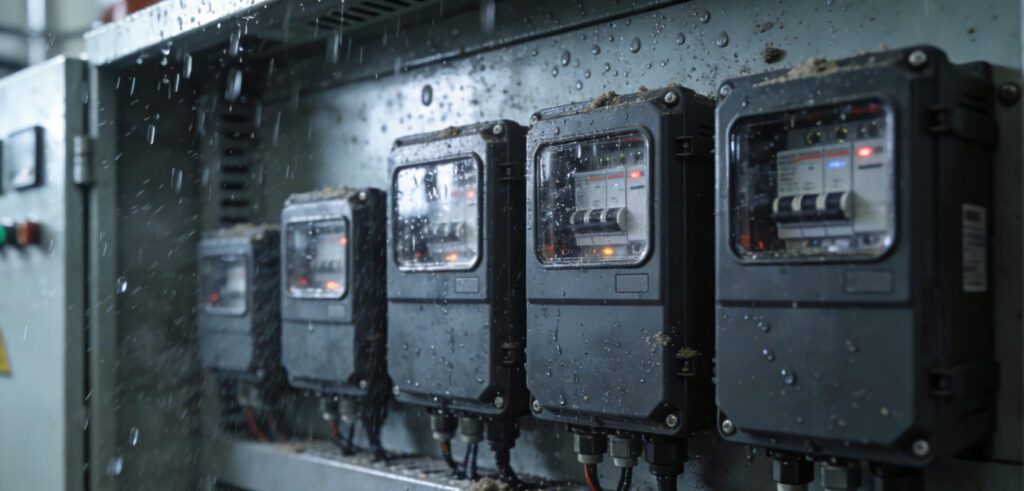

Figure 2: IP65-rated enclosures provide dust-tight and water-jet-resistant protection for critical power electronics.

Ⅳ. Integration with Dry-Type Transformers

BKPOWER specializes in dry-type transformers ranging 10-100 KVA. These units pair optimally with UPS systems. This integration creates superior power quality solutions.

Voltage Transformation Benefits

Mining equipment operates at various voltage levels. Transformers step down medium voltage to utilization voltages. UPS systems then protect at the application level. This two-stage approach:

• Reduces fault current levels
• Improves voltage regulation
• Provides galvanic isolation

Harmonic Mitigation

Modern mining uses variable speed drives. These create harmonic distortion. Dry-type transformers with K-factor ratings handle these loads. They prevent overheating. When paired with UPS systems, they deliver clean power to sensitive controls.

Safety Advantages

Dry-type transformers contain no oil. They eliminate fire hazards. They suit confined underground spaces. Combined with UPS units, they create flame-resistant power distribution. This aligns with mining safety regulations.

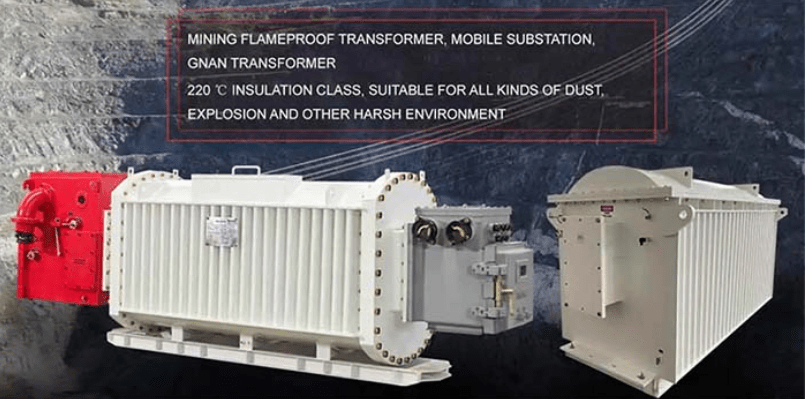

Figure 3: Dry-type transformers offer flame-resistant, maintenance-free power distribution for mining applications.

Ⅴ. Power Quality Management: Harmonics and Sag Protection

Voltage sags cause 80% of industrial equipment disruptions. Mining operations face unique sag sources:

• Large motor startups on conveyors
• Transformer energization
• Short circuit events on distribution feeders

A heavy duty UPS system with double-conversion topology eliminates these disturbances. It completely regenerates output voltage. It isolates loads from network anomalies.

Harmonic Filtration

Nonlinear loads distort current waveforms. This causes:

• Transformer overheating
• Neutral conductor overloading
• Communication interference

Integrated active filters within UPS units correct power factor. They inject compensating currents. They maintain THD below 5%.

Ⅵ. Intelligent Monitoring and Predictive Maintenance

Modern mining UPS for harsh environment units include advanced diagnostics. These systems enable condition-based maintenance. They reduce unplanned outages.

Key Monitoring Parameters

• Battery impedance trending: Tracks internal battery resistance. It predicts end-of-life.
• Thermal mapping: Monitors hotspot temperatures. It prevents insulation damage.
• Vibration analysis: Detects mechanical loosening. It identifies mounting degradation.

Remote Connectivity

Ethernet and 4G connectivity enable centralized monitoring. Operators check status from surface control rooms. They receive alarm notifications. They schedule maintenance during planned shutdowns.

Ⅶ. Conclusion and Selection Guidelines

Selecting a heavy duty UPS system for mining requires careful analysis. Consider these factors:

Capacity Sizing: Calculate actual load requirements. Add 20% growth margin. Account for inrush currents from motors.

Environmental Rating: Specify IP65 minimum for dusty environments. Require tropicalization treatment for humid conditions. Demand seismic qualification for vibration zones.

Battery Chemistry: Lithium iron phosphate (LiFePO4) offers longer life. It operates in wider temperature ranges. It requires less maintenance than lead-acid alternatives.

Service Support: Choose suppliers with local technical presence. Mining locations are remote. Response times affect operational availability.

BKPOWER delivers integrated power solutions. Our dry-type transformers and UPS systems work as unified platforms. We engineer for 10-100 KVA applications. We optimize for mining environments. Contact our technical team for site-specific recommendations.
