How to Choose the Right Industrial Uninterruptible Power Supply

Introduction: Why Every Business Needs a UPS System

Power instability is not a question of “if”—it is a question of “when.” Voltage sags, sudden blackouts, and harmonic distortion cost businesses billions annually in lost productivity, corrupted data, and premature equipment failure. A single unplanned outage in a manufacturing plant can halt production for hours; in a hospital, it can risk patient safety; in a data center, it can breach SLA commitments worth thousands of dollars per minute .

An industrial uninterruptible power supply (UPS system) solves this by providing immediate, clean backup power the moment grid quality degrades. But not all UPS systems are built the same. Choosing the wrong topology or undersizing your unit can leave critical loads exposed. This guide walks you through the essential concepts, types, calculations, and real-world applications—so you can specify, size, and source the right UPS power supply with confidence.

What Is a UPS System? Core Concepts Defined

The Engineering Definition

A UPS system (Uninterruptible Power Supply) is an electrical apparatus that delivers emergency power to connected loads when the primary power source fails or drifts outside acceptable voltage/frequency windows. It sits between the utility grid and your equipment, continuously monitoring input quality and switching to battery-derived AC power within milliseconds when anomalies are detected .

Key components include:

• Rectifier: Converts incoming AC to DC to charge batteries and feed the inverter
• Battery Bank: Stores DC energy for backup runtime (typically VRLA lead-acid or lithium-ion)
• Inverter: Converts DC back to clean AC power for the load
• Static Bypass Switch: Transfers load to utility power during UPS maintenance or fault conditions
• Automatic Voltage Regulator (AVR): Corrects minor voltage fluctuations without draining the battery

Common Misconceptions

Myth 1: “A UPS is just a big surge protector.” Reality: A surge protector only clamps voltage spikes. A UPS system provides continuous power during outages and regulates voltage in real time. The two serve fundamentally different protection layers.

Myth 2: “All UPS systems provide pure sine wave output.” Reality: Only online double-conversion and some line-interactive units output a true sine wave. Budget standby models often produce a modified sine wave (stepped approximation), which can cause overheating in sensitive motor loads or server power supplies .

Myth 3: “A voltage stabilizer can replace a UPS.” Reality: A voltage stabilizer regulates voltage but offers zero backup power during a blackout. In regions with frequent outages, you need both: a stabilizer upstream to condition the grid, and a UPS downstream to provide ride-through time .

Types of UPS Systems: Topology Comparison

UPS systems are categorized by how power flows through the unit. Each topology offers a different balance of protection level, efficiency, and cost.

1. Standby / Offline UPS

How it works: The load runs directly on utility power. When the UPS detects a blackout or severe voltage anomaly, it switches the load to battery power via an inverter. Transfer time is typically 4–10 milliseconds .

Key characteristics:

• Lowest cost entry point
• Basic surge protection and battery backup
• Modified sine wave output on most models
• Suitable for non-critical loads: desktop PCs, POS terminals, home offices

Best for: Small businesses, retail POS systems, and residential backup where a brief transfer gap is acceptable.

2. Line-Interactive UPS

How it works: The load normally runs on conditioned utility power. A multi-tap autotransformer inside the UPS corrects voltage sags and surges (typically ±15–25%) without switching to battery. During a blackout, the inverter activates to supply backup power .

Key characteristics:

• Faster response than standby units
• AVR handles routine voltage fluctuations, extending battery life
• Pure or simulated sine wave depending on model
• Mid-range pricing

Best for: Small-to-medium business servers, network closets, telecom equipment, and environments with frequent voltage swings but rare blackouts.

3. Online Double-Conversion UPS

How it works: Incoming AC is continuously converted to DC, then reconstructed to AC by the inverter. The load is always powered by the inverter, never directly by the grid. There is zero transfer time to battery .

Key characteristics:

• Highest level of power protection: isolates load from all grid anomalies including harmonics, frequency variation, and noise
• True sine wave output with tight voltage regulation (±1%)
• Efficiency typically 93–97% in normal mode; newer designs reach 98% at partial load
• Higher upfront cost but lower total cost of ownership (TCO) due to longer battery life and reduced equipment wear

Best for: Data centers, medical imaging equipment, industrial PLCs, semiconductor manufacturing, and any environment where downtime is measured in thousands of dollars per minute.

4. Modular UPS Systems

A subset of online double-conversion, modular UPS systems use rack-mount power and battery modules that can be added or hot-swapped without shutting down the critical load. The global modular UPS market is forecast to reach USD 8.9 billion by 2030 at a 9.8% CAGR , driven by data center demand for scalable, “pay-as-you-grow” architectures.

Core Application Industries and Scenarios

Data Centers & Cloud Infrastructure

Data centers require 99.999% uptime. A single outage can violate SLAs costing up to USD 10,000 per minute. Online double-conversion UPS systems are mandatory here, often deployed in N+1 or 2N redundant configurations. With AI workloads pushing rack densities beyond 30 kW, lithium-ion UPS systems are rapidly replacing VRLA batteries due to 3× energy density and 8–10 year lifespan .

Industrial Manufacturing & Automation

CNC machines, robotic welding lines, and PLC-controlled conveyors are highly sensitive to voltage dips. A 200 ms sag can reset a PLC program, scrapping an entire production batch. Industrial UPS systems in the 10–200 kVA range provide the ride-through time needed for orderly shutdowns or generator sequencing.

Healthcare & Medical Facilities

MRI scanners, patient monitors, and surgical robots cannot tolerate power interruptions. Medical-grade UPS systems must comply with IEC 60601-1 safety standards and provide galvanic isolation. Online double-conversion topology is standard in hospital central UPS installations.

Commercial Buildings & Critical Infrastructure

Elevator control systems, fire suppression panels, security access control, and emergency lighting all require backup power. A line-interactive UPS in the 1–10 kVA range is typically sufficient for these loads, with runtime focused on safe evacuation rather than continuous operation.

Telecommunications & 5G Networks

5G radio heads consume 3–4× more power than 4G equipment . Telecom shelters in remote locations rely on ruggedized UPS systems with wide temperature tolerance and lithium-ion batteries that require no maintenance access for years.

Solar & Renewable Energy Integration

Hybrid solar inverters with built-in UPS functionality are gaining traction. During daylight hours, solar arrays charge batteries and power the load; at night or during outages, the battery inverter seamlessly takes over. This reduces reliance on diesel generators and aligns with corporate ESG targets.

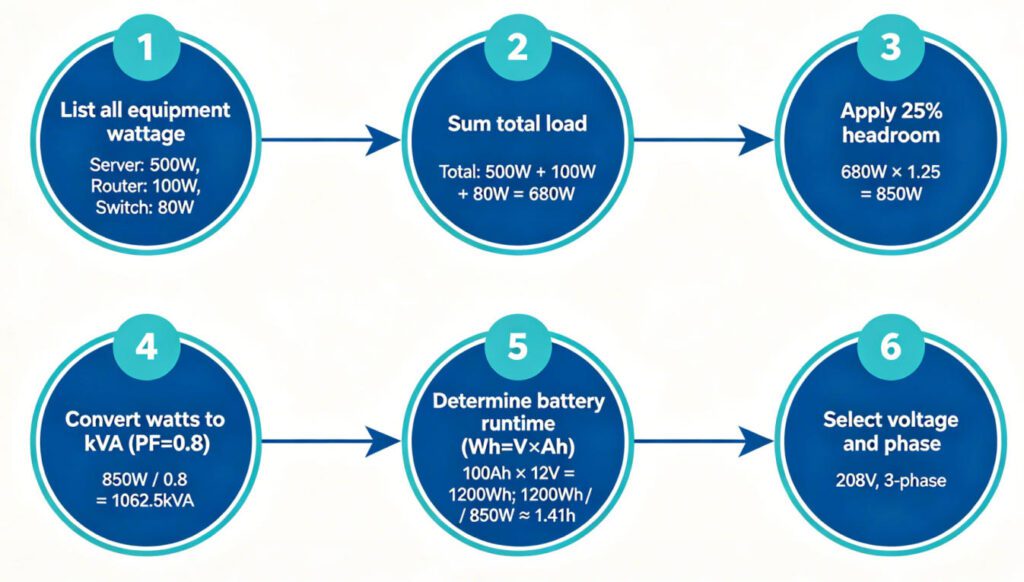

How to Size and Select a UPS System: The Engineer’s Checklist

Step 1: Calculate Total Load in Watts

List every device the UPS will protect. Sum the wattage (not VA) of all connected loads. If only amperage (A) is listed:

Watts = Volts × Amps × Power Factor

For IT equipment, assume a power factor (PF) of 0.9–0.99. For industrial motor loads, PF may be 0.7–0.8 .

Example:

• 2 × Servers @ 450W each = 900W
• 1 × Network switch @ 150W = 150W
• 1 × Storage array @ 300W = 300W
• Total = 1,350W

Step 2: Apply Headroom and Convert to kVA

UPS ratings are expressed in volt-amperes (VA) or kilovolt-amperes (kVA). To convert:

kVA = Watts ÷ (1,000 × Power Factor)

With a 0.9 PF: 1,350W ÷ 900 = 1.5 kVA minimum

Industry best practice is to add 20–30% headroom for future expansion and peak loads :

Recommended UPS Size = 1.5 kVA × 1.25 = 1.875 kVA → Round up to 2 kVA (or 2,000 VA)

Step 3: Determine Required Runtime

Runtime depends on battery capacity (Ah or Wh) and load. The fundamental formula:

Runtime (hours) = Battery Capacity (Wh) × Depth of Discharge × Inverter Efficiency ÷ Load (W)

For lead-acid batteries, depth of discharge (DoD) should not exceed 50% to preserve cycle life. Lithium-ion batteries tolerate 80–90% DoD .

Example Calculation:

• 2 kVA UPS with 48V, 100Ah battery bank
• Total energy = 48V × 100Ah = 4,800 Wh
• Load = 1,350W; DoD = 50%; Inverter efficiency = 92%
• Runtime = 4,800 × 0.50 × 0.92 ÷ 1,350 = 1.63 hours (≈ 98 minutes)

For extended runtime, add external battery modules (EBM) or specify a higher Ah capacity at procurement.

Step 4: Match Input/Output Voltage and Phase

• Single-phase (1φ): 110V, 120V, 220V, 230V, 240V — typical for loads up to 20 kVA
• Three-phase (3φ): 208V, 380V, 400V, 480V — standard for industrial loads above 10 kVA

Verify that the UPS input voltage range accommodates your local grid tolerance. In regions with severe voltage swings, a servo voltage stabilizer installed upstream is strongly recommended.

Step 5: Verify Form Factor and Environment

• Tower: Floor-standing, easy battery access, suitable for server rooms and industrial floors
• Rackmount (1U–6U): Fits standard 19-inch server racks, ideal for data centers
• Wall-mount: Compact, for telecom closets and retail environments

Operating temperature range matters. Standard UPS units are rated for 0–40°C. If installed in unconditioned telecom shelters or outdoor enclosures, specify a wide-temperature industrial model.

Battery Technology: VRLA vs. Lithium-Ion

In 2024, lithium-ion batteries captured 44.1% revenue share of the UPS battery market, overtaking lead-acid as the dominant technology . For new installations with a 10-year horizon, lithium-ion is increasingly the default choice despite higher initial capex.

Procurement Best Practices: How to Avoid Common Pitfalls

Mistake 1: Buying on Price Alone

The cheapest UPS often lacks true sine wave output, network management cards, or hot-swappable batteries. Calculate total cost of ownership (TCO) over 10 years, including energy losses, battery replacements, and downtime risk.

Mistake 2: Ignoring Scalability

Data center loads grow 15–20% annually. A monolithic 20 kVA UPS cannot be expanded without replacement. Modular UPS systems let you add 5–10 kVA power modules as needed, preserving capital and floor space .

Mistake 3: Overlooking Environmental Ratings

A standard office UPS installed in a factory workshop or outdoor telecom shelter will fail prematurely. Specify IP rating, operating temperature, and humidity tolerance for your actual installation environment.

Mistake 4: Neglecting Remote Monitoring

Modern UPS systems offer SNMP, Modbus, and cloud-based monitoring. Without remote visibility, you discover battery failures only during an actual outage. Ensure your UPS supports predictive maintenance alerts and integrates with your DCIM or BMS platform.

Sourcing Strategy: Factory Direct vs. Trading Companies

When procuring industrial UPS systems, the supplier model significantly impacts lead time, customization, and lifecycle support.

BKPOWER operates as a factory-direct manufacturer with in-house R&D, SMT lines, and automated test rigs. This enables:

• Custom OEM/ODM: Private-label branding, custom enclosures, and firmware tailored to regional grid standards
• Global Certifications: CE, ISO 9001, and IEC 62040 compliance for unrestricted export
• Export-Ready Logistics: FOB, CIF, and DDP Incoterms with experience in 50+ countries
• Warranty & After-Sales: 1~2 years standard warranty with optional extended coverage; remote diagnostics and field engineer dispatch

Conclusion: Protect Your Power, Protect Your Business

Power quality is foundational to operational resilience. Whether you are safeguarding a hyperscale data center, a hospital operating theater, or a factory automation line, the right UPS system is not an expense—it is insurance against catastrophic downtime.

Key takeaways from this guide:

• Match topology to criticality: Online double-conversion for zero-downtime environments; line-interactive for cost-sensitive applications
• Size with headroom: Calculate load in watts, convert to kVA with PF, then add 25% for growth
• Think lifecycle: Lithium-ion batteries reduce TCO despite higher upfront cost
• Buy direct: Factory-direct procurement ensures customization, traceability, and responsive support

Learn more professional power solutions at www.bkpowers.com. Our application engineers are available to review your load profile, runtime requirements, and installation environment—ensuring you specify the right industrial uninterruptible power supply the first time.
