Cleanroom Stability: UPS for Industrial Pharmaceutical Power

TIPS：In pharmaceutical manufacturing environments, UPS for industrial uninterruptible power supply systems serve not merely as backup devices, but as core infrastructure maintaining cleanroom stability. When HVAC systems encounter power interruptions or harmonic pollution, entire drug batches face contamination risks and compliance violations. This article explores how deploying pharma cleanroom ups systems—specifically those featuring THD<3% low-harmonic output characteristics within UPS for industrial uninterruptible power supply architectures—ensures precise control of critical environmental parameters. Pharma cleanroom ups voltage conditioning capabilities shield sensitive temperature and humidity sensors from harmonic interference, providing truly stable power environments for pharmaceutical production.

Ⅰ. The Critical Link Between Power Quality and Cleanroom Stability

Pharmaceutical manufacturing demands absolute environmental precision. Cleanrooms operate within strict ISO 14644 standards. Temperature fluctuations of even 0.5°C can compromise drug formulations. Humidity variations create condensation risks. These environmental parameters depend entirely on reliable HVAC systems. Power instability remains the most frequent cause of environmental excursions.

Traditional power protection strategies focus solely on outage prevention. They ignore power quality. However, modern pharmaceutical facilities face a more insidious threat. Harmonic distortion contaminates electrical supplies. Voltage notching disrupts sensor accuracy. These power quality issues cause gradual system degradation. UPS for industrial uninterruptible power supply systems with low THD output address both outage and quality challenges simultaneously.

Ⅱ. HVAC Vulnerability in Pharmaceutical Environments

Environmental control systems form the backbone of pharmaceutical cleanrooms. These complex infrastructures require precise electrical feeding.

1. Temperature Control Sensitivity

Biological products require strict temperature maintenance. Vaccine production demands 2-8°C stability. Monoclonal antibody manufacturing operates at controlled ambient conditions. Precision chillers and heating coils maintain these setpoints. A 10-second power interruption forces HVAC restart sequences. This recovery period often exceeds 30 minutes. During this window, product temperatures drift. Batch viability faces compromise.

2. Humidity Control Precision

Relative humidity affects sterile manufacturing significantly. Dry conditions create electrostatic discharge risks. Excessive moisture promotes microbial growth. Desiccant wheels and steam injectors balance these parameters. Their control algorithms depend on accurate sensor feedback. Power quality disturbances corrupt sensor readings. This corruption causes over-compensation or under-compensation. Pharma cleanroom ups systems prevent these control oscillations.

3. Airflow and Pressure Differentials

Cleanrooms maintain positive pressure. This prevents contaminated air infiltration. Variable frequency drives (VFDs) modulate fan speeds. VFDs emit harmonic currents back into electrical systems. These harmonics distort voltage waveforms. Sensitive measurement equipment misreads. Filter monitoring systems malfunction. The cascading effects threaten certification compliance.

Figure 1: Pharmaceutical cleanroom HVAC systems require stable, clean power for continuous operation

Ⅲ. Harmonic Distortion: The Invisible Contaminant

Total Harmonic Distortion (THD) represents the critical yet frequently overlooked parameter in cleanroom power design.

1. Understanding THD Impact

THD measures voltage waveform deviation from pure sinusoidal shape. Standard industrial loads generate 15-30% THD. These distortions heat up transformers. They cause neutral conductor overloading. Most critically for pharmaceuticals, they interfere with sensor accuracy. Temperature transmitters rely on 4-20mA signal integrity. Voltage distortion creates signal noise. Control systems receive false environmental readings.

2. The 3% Threshold Significance

IEEE 519 standards recommend THD limits below 5% for sensitive equipment. Pharmaceutical applications benefit from stricter standards. BKPOWER engineering demonstrates that THD<3% ensures:

Stable sensor calibration
Precise actuator response
Uninterrupted data logging
Consistent batch records

This performance level exceeds typical commercial uninterruptible power supply specifications. Industrial-grade design separates UPS for industrial uninterruptible power supply units from standard office equipment.

3. High-THD Consequences in Practice

Consider a vaccine production facility. Fill-finish operations occur in ISO 5 environments. Particle counters monitor air quality continuously. These optical sensors contain sensitive photodetectors. Voltage harmonics create measurement noise. False particle counts trigger unnecessary line stoppages. Alternatively, missed contamination events pass undetected. Both scenarios incur massive financial losses.

Ⅳ. Technical Architecture of Cleanroom-Grade UPS

Effective pharma cleanroom ups deployment requires specific technical attributes beyond standard capabilities.

1. Double-Conversion Online Technology

Online UPS configurations provide complete electrical isolation. Incoming AC power converts to DC. Battery banks maintain this DC bus. Inverters regenerate clean AC output. This architecture blocks all power disturbances. It eliminates transfer time during outages. Most importantly, it enables active harmonic filtering. IGBT-based inverters synthesize pure sine waves. THD levels remain below 3% regardless of load conditions.

Figure 2: Comparison between standard power (high THD) and clean power (<3% THD) for sensitive equipment

2. Active Harmonic Filtering

Modern ups power supply systems incorporate active filters. These devices inject counter-harmonics into the electrical stream. They cancel distortion upstream. The result approaches theoretical sine wave purity. Pharmaceutical facilities benefit particularly. VFDs, switching power supplies, and electronic ballasts populate these environments. Each introduces harmonic content. Active filtering neutralizes these effects at the source.

3. Galvanic Isolation Benefits

Isolation transformers separate critical loads from grid disturbances. They block common-mode noise. They prevent ground loop currents. Pharmaceutical instrumentation benefits from this separation. Analytical balances stabilize. Chromatography systems baseline properly. These subtle improvements aggregate into measurable quality enhancements.

Ⅴ. BKPOWER Solution: Engineering for Zero-Defect Power

BKPOWER specializes in industrial uninterruptible power supply systems engineered specifically for life sciences applications.

1. THD<3% Technical Achievement

Through proprietary SPWM (Sinusoidal Pulse Width Modulation) algorithms, BKPOWER units maintain output THD below 3% at all load levels. This performance persists even with 100% non-linear loading. The technology utilizes:

High-frequency IGBT switching
Advanced DSP control loops
Multi-level inverter topologies
Precision output filters

These engineering choices ensure that connected HVAC equipment receives laboratory-grade power quality.

2. Temperature and Humidity Protection

BKPOWER battery backup configurations provide:

Zero-transfer switching for HVAC compressors
Extended runtime for controlled shutdown sequences
Generator synchronization capabilities
Remote monitoring of environmental conditions

Integration with Building Management Systems (BMS) enables proactive responses. Facilities teams receive alerts before excursions occur.

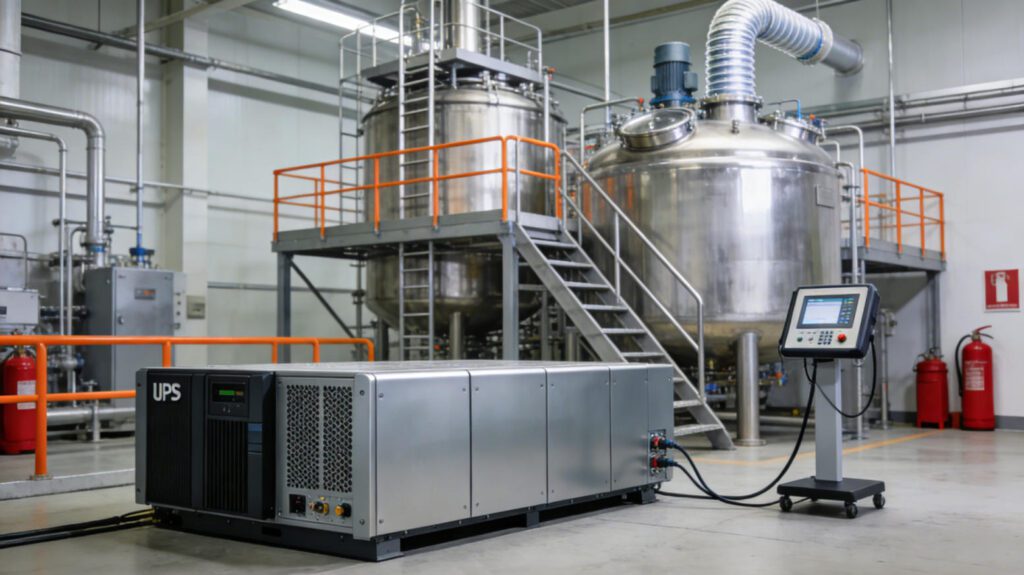

Figure 3: Industrial UPS installation protecting critical pharmaceutical infrastructure

3. Compliance and Validation Support

Pharmaceutical facilities require extensive documentation. BKPOWER provides IQ/OQ/PQ protocol templates. These streamline validation processes. Mean Time Between Failures (MTBF) exceeds 200,000 hours. This reliability supports continuous monitoring requirements. FDA 21 CFR Part 11 compliance features protect data integrity during power events.

Ⅵ. Implementation Strategies for Cleanroom Protection

Deploying UPS systems in pharmaceutical environments requires systematic planning.

1. Critical Load Classification

Not all equipment requires UPS protection. Critical classification includes:

HVAC main control panels
Chiller compressors and pumps
Humidity control systems
Environmental monitoring and alarm systems
Access control and cleanroom integrity systems

Non-critical loads include general lighting and office equipment. This prioritization optimizes capital expenditure.

2. Capacity Sizing Methodology

Oversizing creates inefficiency. Undersizing risks failure. Proper sizing considers:

Concurrent starting currents for HVAC compressors
Power factor of VFD loads
Future expansion headroom (typically 20-25%)
Redundancy requirements (N+1 or 2N)

BKPOWER engineering teams conduct load audits. They simulate worst-case scenarios. This ensures adequate protection margins.

3. Redundancy Architectures

Single points of failure violate pharmaceutical risk management principles. Distributed ups supplies architectures provide zonal protection. Modular UPS configurations enable maintenance without downtime. N+1 redundancy ensures continuous operation even during component failure.

Ⅶ. Economic and Compliance Justification

Investment in premium uninterruptible power supply infrastructure requires business justification.

1. Batch Loss Prevention

Biopharmaceutical batches represent millions in value. A single contamination event destroys this investment. HVAC failures represent the leading cause of environmental excursions. Reliable power protection prevents these losses. Return on investment occurs with the first prevented batch loss.

2. Regulatory Audit Protection

FDA inspections focus on data integrity and environmental control. Power-related deviations trigger Form 483 observations. Remediation costs exceed preventive infrastructure investment. Continuous monitoring demonstrates quality commitment. It strengthens regulatory standing.

3. Operational Continuity Metrics

Modern facilities track Overall Equipment Effectiveness (OEE). Unplanned downtime destroys these metrics. Cleanroom recovery following HVAC restart requires 15-45 minutes. UPS protection prevents these interruptions. Production schedules remain intact.

Conclusion

Cleanroom stability demands more than backup power. It requires laboratory-grade power quality. Pharma cleanroom ups systems featuring THD<3% output deliver this performance. They protect HVAC systems from both interruptions and distortion. BKPOWER engineering addresses these specific pharmaceutical requirements. The investment protects product quality, regulatory compliance, and operational continuity. In pharmaceutical manufacturing, power quality equals product quality. Choose UPS for industrial uninterruptible power supply systems engineered for this mission-critical responsibility.

BK-G33-160KVA-Industrial Power Frequency UPS
